LED reflector family QR07515-C1C

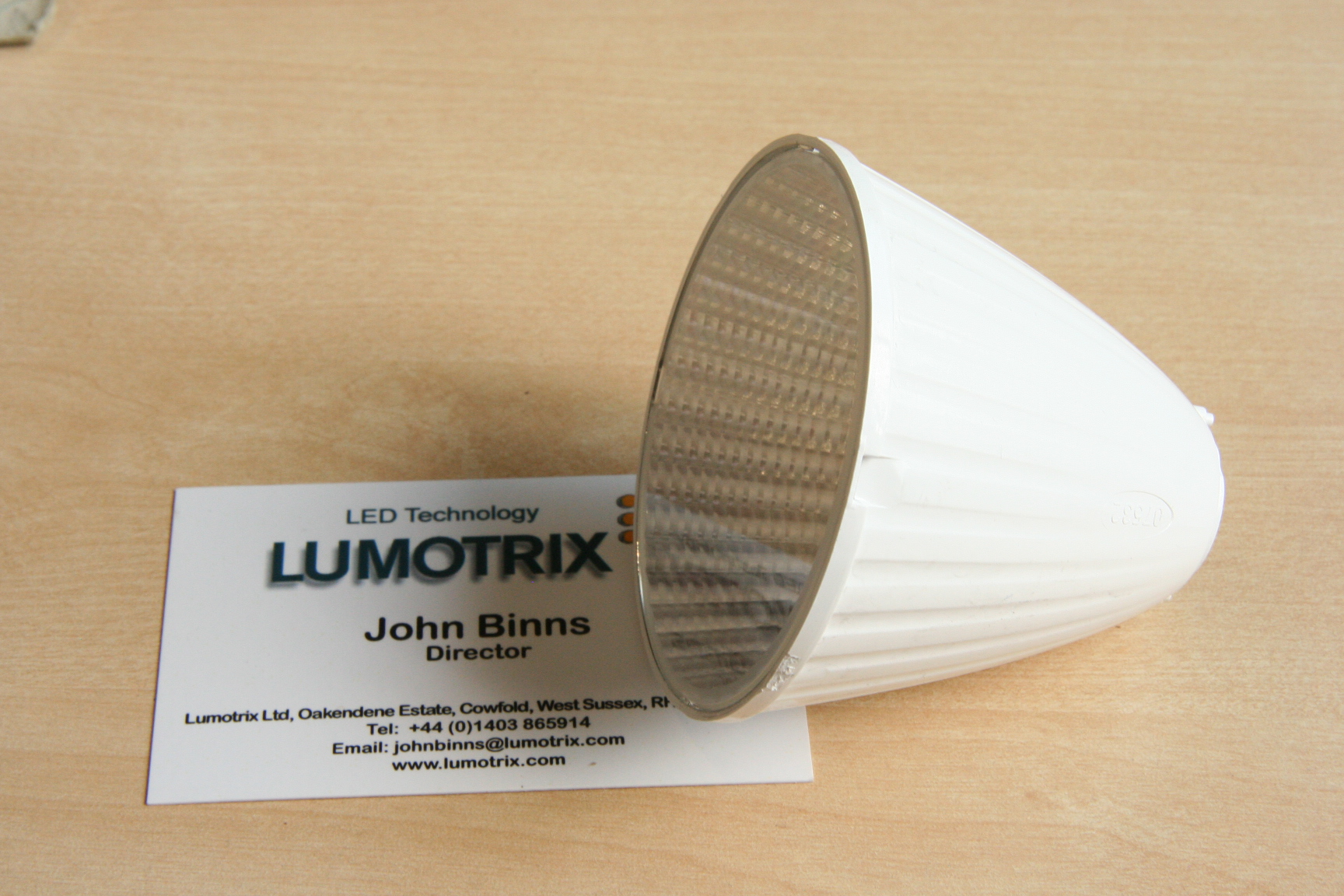

75mm reflector for 18mm LEDs

75mm reflector for 18mm LEDs

75mm reflector for 18mm LEDs

Reflector for:

LED 1: Bridgelux ES RA                                            needs LED holder: no

LED 2: Citizen CLL030                                             needs LED holder: CIHL030-P

LED 3: Cree CXA2520, CXA2530, CXA2540       needs LED holder: CRH2520-P

LED 4: Sharp Megazeni                                            needs LED holder: SHHMEGA-P or Lumotrix Lumoclip.

LED 5: Sharp TigerZeni                                             needs LED holder: Lumotrix Lumoclip.

LED 6: Tridonic LES17                                              needs LED holder: TRH0017-P



Reflectors in the family:

Beam Angle 16 degrees: QR07515-C1C (Optosource Stock code: QR07515-C1C-BESQ. Does this stock code include a LED holder? No)

Beam Angle 24 degrees: QR07530-C1C (Optosource Stock code: QR07530-C1C-BESQ. Does this stock code include a LED holder? No)

Beam Angle 30 degrees: QR07532-C1C (Optosource Stock code: QR07532-C1C-BESQ. Does this stock code include a LED holder? No)

Beam Angle 38 degrees: QR07538-C1C (Optosource Stock code: QR07538-C1C-BESQ. Does this stock code include a LED holder? No)

Diameter: 75mm

Height: 63.6mm

Aperture diameter for LED: 19mm

Clear polycarbonate dust cover across the front: yes

Family Datasheet:QR075 15 30 32 38 -C1C

CAD file: ask
