LED reflector family BR07515-C1C-BV13

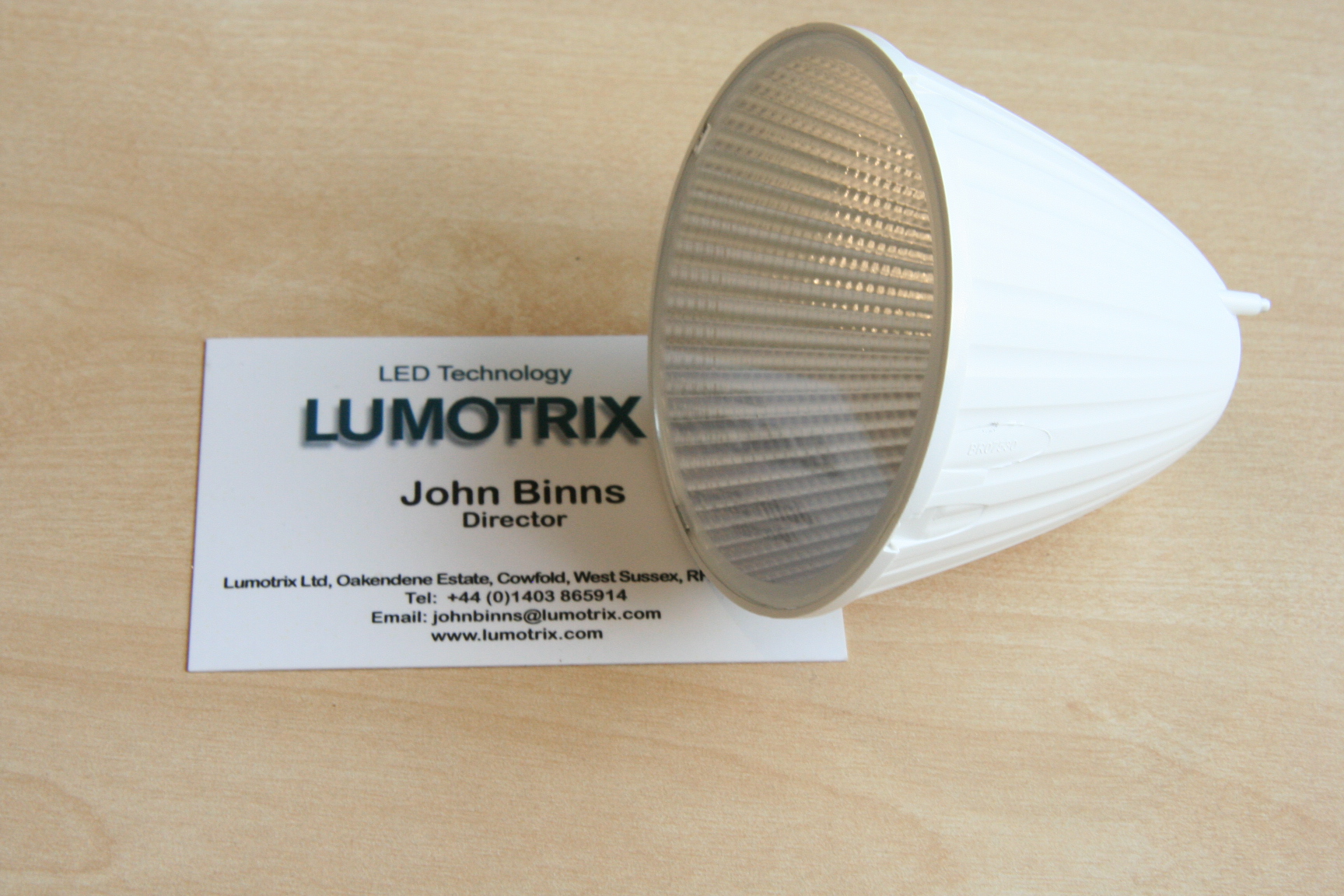

75mm LED reflector for Bridgelux Vero 13

75mm LED reflector for Bridgelux Vero 13



Optosource have very similar 75mm diameter reflectors to cover the Bridgelux Vero 13 and Vero 18 LEDs.  We used to think they were the same and called them the BR07515-C1C family. In fact the reflectors are slightly different, and so we have added a -BV13 designation after the reflectors for the Vero 13 LED.

Reflectors for:75mm LED reflector for Bridgelux Vero 13 LED 1: Bridgelux Vero 13      needs LED holder: no











Reflectors in the family:

Beam Angle 16 degrees: BR07515-C1C-BV13 (Optosource Stock code: BR07515-C1C-BV13. Does this stock code include a LED holder? No)

Beam Angle 30 degrees: BR07530-C1C-BV13 (Optosource Stock code: BR07530-C1C-BV13. Does this stock code include a LED holder? No)

Beam Angle 38 degrees: BR07540-C1C-BV13 (Optosource Stock code: BR07540-C1C-BV13. Does this stock code include a LED holder? No)

Diameter: 75mm

Height: 63.6mm

Aperture diameter for LED: 19mm

Clear polycarbonate dust cover across the front: yes

Family Datasheet:BR075 15 30 40 -C1C-BV13 Datasheet CAD file: ask
